T3
Tube heat exchanger with 3 conducts
| Conduct | 3 x 15 M |
| Milk connection | NW-SMS TC 50mm |
| Support | 4 legs |
Tube heat exchanger T3
The tube heat exchanger is installed in the milk delivery line between milking parlour or robot and the milk cooling tank and
connected to spring or ice water. The milk enters pre-cooled in the milk cooling tank.

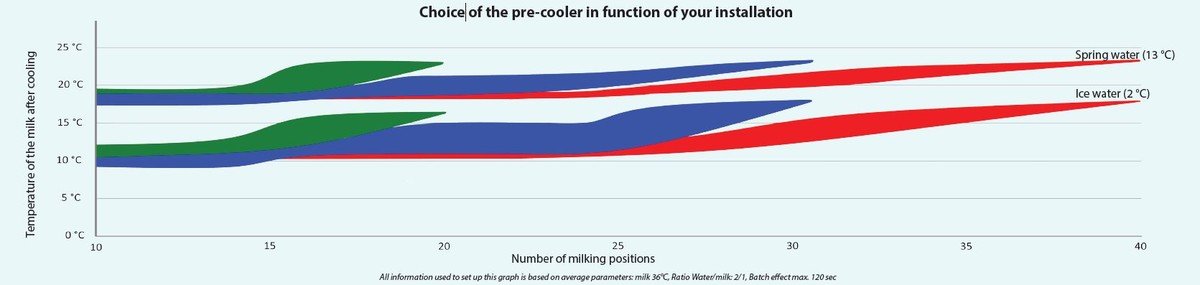

Application areas
The T3 is used in milking parlours up to 30 positions and
in milking robots up to 14 robots.
Your benefits
- A decrease in energy consumption up to 50% when cooling the milk
- Easy to clean, the tube heat exchanger is rinsed at the same time as the milk installation and does not have to be disassembled
- Lower mixing temperature in the tank at the 2nd and subsequent milking breaks reduces the risk of bacterial formation
- No seals, the milk only comes into contact with the stainless steel, so no pollution or contamination.
- No maintenance costs
Technical information
| Specifications | |
| Diameter | 646 mm |
| Height | 800 mm |
| Weight | 70 KG |
| Conduct | 3 x 15 M |
| Volume milk circuit | 11.4 L |
| Milk connection | NW-SMS-TC 50mm |
| Volume water circuit | 9.6 L |
| Water connection | BSP 1" 1/4" Female |
| Support | 4 legs |
| Optional | Wall fixation |
T2 T3 T4
